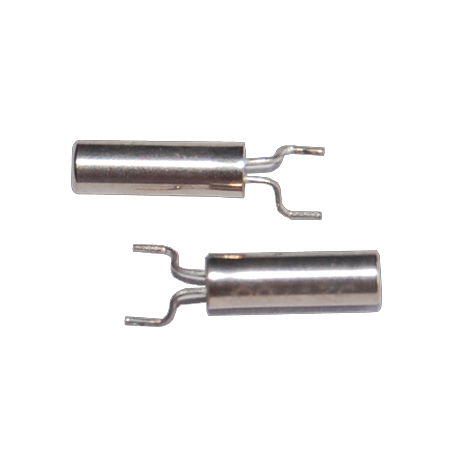

*AT206F frog foot package、Clock crystal oscillator
*High precision, high frequency stability, seismic reliability
*Frequency:33.768KHz
*Mobile phones, watches, night crystal modules, and wearable devices
*conform toRoHS lead-free
? Specifications
|
Type |
＊AT206F |
|
頻率范圍 |
Frequency Range |
32.768Khz(30KHZ to 200KHZ 888 |
|
頻率溫度系數 |
Parabolic curvature constant |
-0.042ppm/(?℃)^2Max |
|
調整頻差 |
Frequency Tolerance (F) (at25℃) |
±10ppm to±30ppm |
|
工作溫度范圍 |
Operating Temperature Range |
-10℃ to +60℃ |
|
儲存溫度（℃） |
Storage Temperature Range |
-40℃ to + 85℃ |
|
等效電阻（Ω） |
Equivalent Series Resistance |
See Table 2 |
|
靜態電容 (PF) |
Shunt Capacitance (C0) |
1pF Typical,2pF Max |
|
動電容 (PF) |
M0tionall Capacitance (C1) |
2.5fF Typical |
|
負載電容（PF） |
Load Capacitance(CL) |
Suggested by Customer |
|
絕緣電阻 (??) |
Insulation Resistance（Rs） |
500Megaohms Min at 100VD.C |
|
激勵功率（μ W） |
Drive Level |
1μW max |
|
老化率（ppm/y） |
Aging (25℃) |
±3ppm/year max |

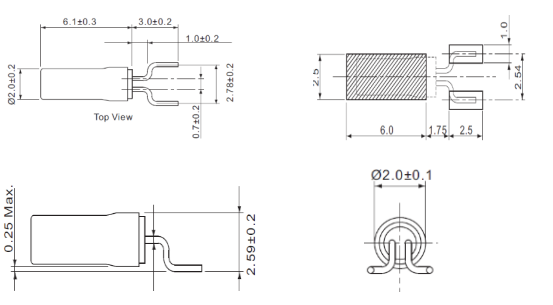

? Dimension(Unit:mm)
